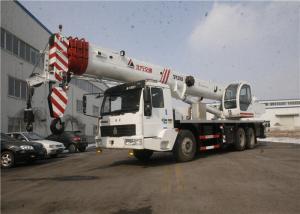

Telescopic Fully Hydraulic Truck Crane with 40m Boom 25 Ton Truck Crane

Name: Telescopic Fully Hydraulic Truck Crane with 40m Boom 25 Ton Truck Crane
Brand: KaiFan
Price: 1 USD

China Telescopic Fully Hydraulic Truck Crane with 40m Boom 25 Ton Truck Crane wholesale

Brand Name : KaiFan

Model Number : KFM5323JQZ25G5

Certification : IQNET,ISO

Place of Origin : China

MOQ : 1

Price : USD

Payment Terms : T/T

Supply Ability : 300/year

Delivery Time : 3months

Altitude : 0-4500m

Elevation of boom : -2~80°

Rated power : 199KW

Max. Torque : 1100n.m

Departure angle : 11°

Traveling speed : 70 km/h

Contact Now

Max Rated Lifting Weight 25000kg Telescopic Fully Hydraulic Truck Crane with 40m Boom

i. Working Range of hydraulic truck crane

“KAI FAN” Brand KFM5323JQZ25G5(QY25G5)Crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 25t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.

ii. Main Parameters of hydraulic truck crane

Items		Unit	Value
Working Performance Parameters	Max. Rated lifting weight	kg	25000
	Max. Lifting force of the basic boom	kn.m	970
	Max. Lifting force of the longest main boom	kn.m	470
	Max. Height of the main boom	m	40
	Max. Height of the vice boom	m	48.2
	Max. Speed of the single rope (the second stage)	m/min	120
Working Speed	Extension time of the lift boom	s	110
	Lifting time of the lift boom	s	60
	Turning speed	r/min	0～2
Weight Parameters	The whole weight	kg	31670
	Load of the front axle	kg	6850
	Load of the rear axle (duel axle)	kg	24820
Traveling Parameters	Max. Traveling speed	km/h	70
	Max. Grade ability	%	30
	Min. Turning radius	m	11
	Min. Ground clearance	m	0.27
	Approaching angle	°	16
	Departure angle	°	11
Dimension Parameters	External dimension(length×width×height)	mm	12790×2500×3460
	Vertical span of outrigger	m	5.35
	Horizontal span of outrigger	m	6.1
	Length of main boom	m	10.3~39.5
	Length of vice boom	m	8.3
	Elevation of boom	°	-2~80
Chassis	Model	—	TAZ5323J
	Engine model	—	WP10.270
	Rated power/speed	kW/(r/min)	199/2200
	Max. Torque/rotate speed	N.m/(r/min)	1100/1200-1600

Telescopic Fully Hydraulic Truck Crane with 40m Boom 25 Ton Truck Crane

FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.

2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.

3. Q:What's your payment method?

A: T/T and L/C are preferred.

4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.

5. Q: How is the packing?

A:All the packing comply with exporting standard.

6. Q: What's your main product?

A: Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and hydraulic truck crane. The products have been sold to more than 20 countries.

Any other questions, please do not hesitate to contact with us.
