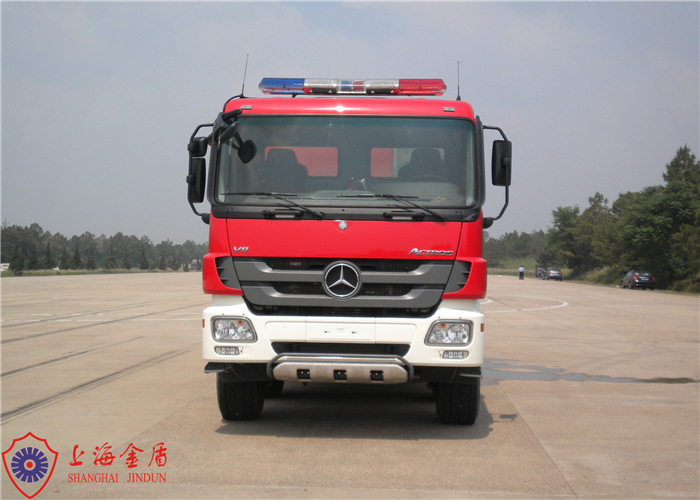

Rotatable Cab 6x4 Drive Six Seats Foam Fire Truck Red Printed Eight Cylinders Engine
Vehicle
| Dimension (L×W×H) | 11310×2500×3630mm |
| Gross weight | 38650kg |
| Complete vehicle shipping mass | 20600kg |
| Seat (inc. driver) | 6 |
| Max. power | 440kw |
Chassis
| Manufacturer | Daimler |
| Model | Actros4160 |
| Drive type | 8x4 |
| Cab | Rotatable type |
| Wheelbase | 1700+4300+1350mm |
| Max. speed | 95km/h |
| Min. turning diameter | ≥26m |
| Approach angle | 23° |
| Departure angle | 11° |
| Engine type | Inline eight-cylinder, four-stroke, water-cooling, electronic direct injection diesel engine |
| Model | OM502LA.IV/3 |
| Max. power | 440kw |
| Max. torque | 2800N•m |
| Emission standard | China IV/Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual, 16 forward gear |
| Tyre | Forward: 4x 385/65R22.5 Rear: 8x 315/80R22.5 |
Cab
| Structure | Rotatable type |
| Seat | 1+1+4 |
| Equipment | Except the original equipments. There is a storage box with cover under the seat, embedded air breathing apparatus fixed mount in the seats |
Electrical system
The main lights in the cab at the top of the long row of lights, configure the 100W alarm control system; a strobe lights installed on both sides and the middle of each compartment (two red and blue).
Painting
Red paint: cab, body (shutter doors, except decorative strip)
White: according to customers requirements.
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
